Customized SMT Through Hole PCB Assembly 1 oZ Copper PCB 2 Layer

Product Categories
Huaswin Electronics Co.,Limited
Contact Now

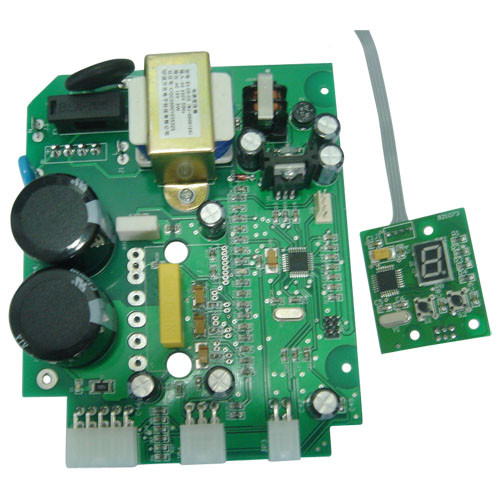

Customized SMT Through Hole PCB Assembly 1 oZ Copper PCB 2 Layer

Brand Name : HUASWIN

Model Number : HSPCBA1087

Certification : ISO/UL/RoHS

Place of Origin : China

MOQ : 1 sets

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10,000pcs per month

Delivery Time : 15-20 working days

Packaging Details : Anti-static bag + Anti-static bubble wrap + Good quality carton box

Contact Now

Customized SMT Through Hole PCB Assembly 1 oZ Copper PCB 2 Layer

Specifications:

  1. Layer: 2 layer
  2. Material: FR4
  3. Board Thickness: 1.6mm
  4. Surface Treatment: Lead free HASL
  5. Solder Mask: Green
  6. Size: 70mm*80mm
  7. Copper Thickness: 1 oZ
  8. Min. Hole Size: 0.1mm
  9. Min. Line Width: 0.075mm
  10. Min. Line Spacing: 0.075mm
  11. Hole vias: Buried hole and blind holes

PCB capability and services:


1. Single-sided, double-sided & multi-layer PCB (up to 30 layers)
2. Flexible PCB (up to 10 layers)
3. Rigid-flex PCB (up to 8 layers)
4. CEM-1, CEM-3 FR-4, FR-4 High TG, Polyimide, Aluminum-based material.
5. HAL, HAL lead free, Immersion Gold/ Silver/Tin, Hard Gold, OSP surface treatment.
6. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
7. Quantities range from prototype to volume production.
8. 100% E-Test


Detailed Specification of PCB Manufacturing

1

layer

1-30 layer

2

Material

CEM-1, CEM-3 FR-4, FR-4 High TG, Polyimide, Aluminum-based material.

3

Board thickness

0.2mm-6mm

4

Max.finished board size

800*508mm

5

Min.drilled hole size

0.25mm

6

min.line width

0.075mm(3mil)

7

min.line spacing

0.075mm(3mil)

8

Surface finish

HAL, HAL Lead free,Immersion Gold/ Silver/Tin, Hard Gold, OSP

9

Copper thickness

0.5-4.0oz

10

Solder mask color

green/black/white/red/blue/yellow

11

Inner packing

Vacuum packing,Plastic bag

12

Outer packing

standard carton packing

13

Hole tolerance

PTH:±0.076,NTPH:±0.05

14

Certificate

UL,ISO9001,ISO14001,ROHS,TS16949

15

Profiling punching

Routing,V-CUT,Beveling

Detailed Specification of Pcb Assembly

1

Type of Assembly

SMT and Thru-hole

2

Solder Type

Water Soluble Solder Paste,Leaded and Lead-Free

3

Components

Passives Down to 0201 Size

BGA and VFBGA

Leadless Chip Carries/CSP

Double-Sided SMT Assembly

Fine Pitch to 08 Mils

BGA Repair and Reball

Part Removal and Replacement-Same Day Service

3

Bare Board Size

Smallest:0.25x0.25 Inches

Largest:20x20 Inches

4

File Formats

Bill of Materials

Gerber Files

Pick-N-Place File(XYRS)

5

Type of Service

Turn-Key,Partial Turn-Key or Consignment

6

Component Packaging

Cut Tape

Tube

Reels

Loose Parts

7

Turn Time

15 to 20 days

8

Testing

AOI inspection

X-Ray inspection

In-Circuit testing

Functional test
